Site Safety
Improve mining safety and optimize operations through work site aerial views and data collection capabilities.
Painpoints
Advantages
Mining areas ofen have inaccessible or high-risk zones, posing challenges for personnel safety.
Improve mine operational safety and reduce risk with frequent aerial oversight.
Obtaining timely and accurate information for swift responses can be difficult.
Enhance decision-making processes with real-time imagery from the mine operations.
Manual inspections might overlook hidden hazards, and data collection might not be comprehensive or accurate.
Create high-precision 2D and 3D models for accurate risk identification and assesment.
Solution
Automated Routine Mining Site Monitoring Solution
Deploy DJI Dock 3 at the mining site, and use the DJI FlightHub 2 as the control platform to remotely control Matrice 4TD to conduct on-site safety inspections.
Automated, scheduled drone flights facilitate frequent and consistent safety inspections of the mining site without the need for constant manual operation.
Minimized labor and time for manual drone operations result in significant cost savings.
Identification of potential safety hazards, including overheated machinery, structural weaknesses, or unsafe conditions in the mine.
Real-time data transmission enables immediate analysis and decision-making.
Drone Platform

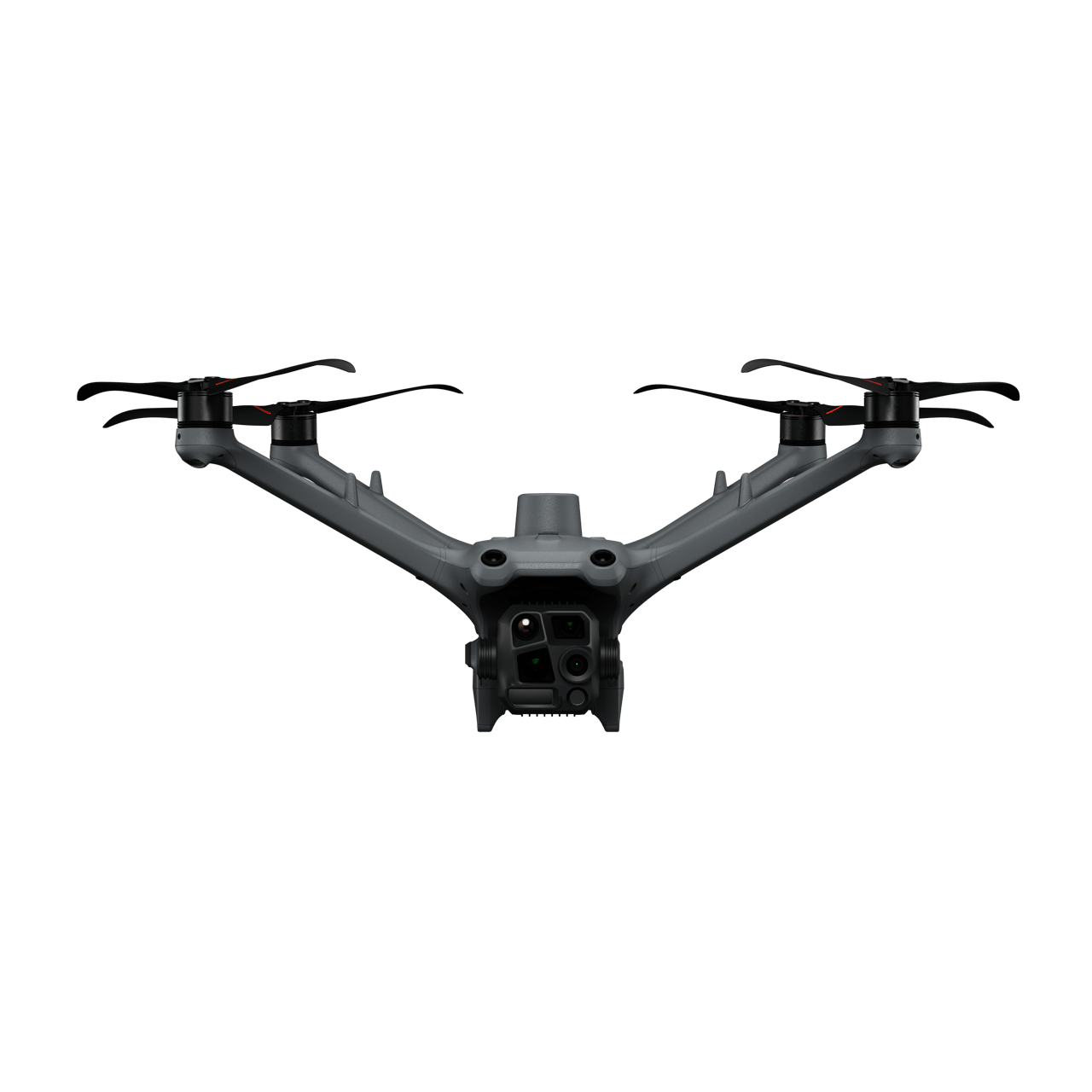

DJI Matrice 4TD
... Open
Weight: 1850 g
Max Flight Time: 54 minutes
Environment Adaptability: IP55 rating, max takeoff altitude 6500 m, max wind speed resistance 12 m/s
Sensing System: Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft
Wide-Angle Camera: 1/1.3-inch CMOS, 48MP effective pixels
Medium Tele Camera: 1/1.3-inch CMOS, 48MP effective pixels
Telephoto Camera: 1/1.5-inch CMOS, 48MP effective pixels
Infrared Thermal Camera: 1280 × 1024@30fps (UHR Infrared Image function enabled, Night Scene mode not enabled)
Laser Rangefinding: 1800m measurement range (1 Hz) @20% reflectivity target
Max Flight Time: 54 minutes
Environment Adaptability: IP55 rating, max takeoff altitude 6500 m, max wind speed resistance 12 m/s
Sensing System: Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft
Wide-Angle Camera: 1/1.3-inch CMOS, 48MP effective pixels
Medium Tele Camera: 1/1.3-inch CMOS, 48MP effective pixels
Telephoto Camera: 1/1.5-inch CMOS, 48MP effective pixels
Infrared Thermal Camera: 1280 × 1024@30fps (UHR Infrared Image function enabled, Night Scene mode not enabled)
Laser Rangefinding: 1800m measurement range (1 Hz) @20% reflectivity target
DJI Dock 3
... Open
Weight: 55 kg (without the drone)
Size: 1760×745×485 mm (L×W×H, dock cover opened)
Environment Adaptability: -30° to 50° C (-22° to 122° F) operating temperature, IP56 rating, maximum operating altitude 4500 m
Max Operating Radius: 10 km
Charging Time: 27 minutes
Security Camera (Internal) Resolution: 1920×1080
Size: 1760×745×485 mm (L×W×H, dock cover opened)
Environment Adaptability: -30° to 50° C (-22° to 122° F) operating temperature, IP56 rating, maximum operating altitude 4500 m
Max Operating Radius: 10 km
Charging Time: 27 minutes
Security Camera (Internal) Resolution: 1920×1080
Payload And Software
Workflow
- Data Collection: Schedule routine data collection flights over the mining site for timely monitoring.
- Data Processing: Obtain multiple data outputs such as 3D Models, DSM, DEM, Point Clouds and Orthomosaic Images to gain more insights on the mining site safety.
- Data analysis: Upload and analyze the collected data to DJI FlightHub 2 to enhance cross-team collaboration.
